For civil, agricultural & forestry applications the question is not “Why?” but
“Why aren’t we using The Green Pipe?

• Replaces concrete, fiber cement & and other piping products in civil, agricultural and forestry applications
• Tested in accordance with AS1462 & AS 2566 for crush strength and life underground
• Vicroads approved for use in Victoria.
• Proven performance Australia wide with national distribution network
• 250mm to 600mm in 6 metre lengths and light weight for easy installation
• Pipe Fittings, Recycled Plastic Headwalls and Water Control Valves to suit

Stormwater and Drainage
The Green Pipe is widely recognised as a cost effective and environmentally friendly alternative for stormwater and drainage systems. Approved and used by councils throughout Australia for stormwater and sewage re-use systems The Green Pipe is providing a real opportunity for Government and non-government organisations to promote their green credentials. Their willingness to use quality, recycled products as an alternative to conventional virgin products will be widely recognised.
Ease of handling solves many difficult access issues and at the same time reduces machinery requirements. Ease of installation will substantially reduce costs for all your drainage projects.
The fully installed and lifecycle cost is lower than comparable products for most applications. Manufactured in 6 metre lengths creating fewer joints during installation, improving laying rates and minimizing potential leakage points. The Green Pipe is tough. Even the highest level acidic soils have no effect on it so that once installed it will last indefinitely. It is easily cut with a chainsaw, circular saw or angle grinder.

Fittings
RPT manufacture a range of fittings for The Green Pipe including bends, elbows, "T’s", reducers etc. Due to the ease of cutting and welding custom made fittings are available at extremely competitive prices.

Crossings or Culverts and Headwalls
The Green Pipe is used extensively throughout Australia as a crossing or culvert by primary producers, contractors, foresters and Government bodies. Combined with RPT’s 100% recycled plastic headwall to provide the total package The Green Pipe correctly installed with recommended minimum coverage and side compaction will carry the heaviest legally loaded traffic and provide many years of trouble free service under your roads.

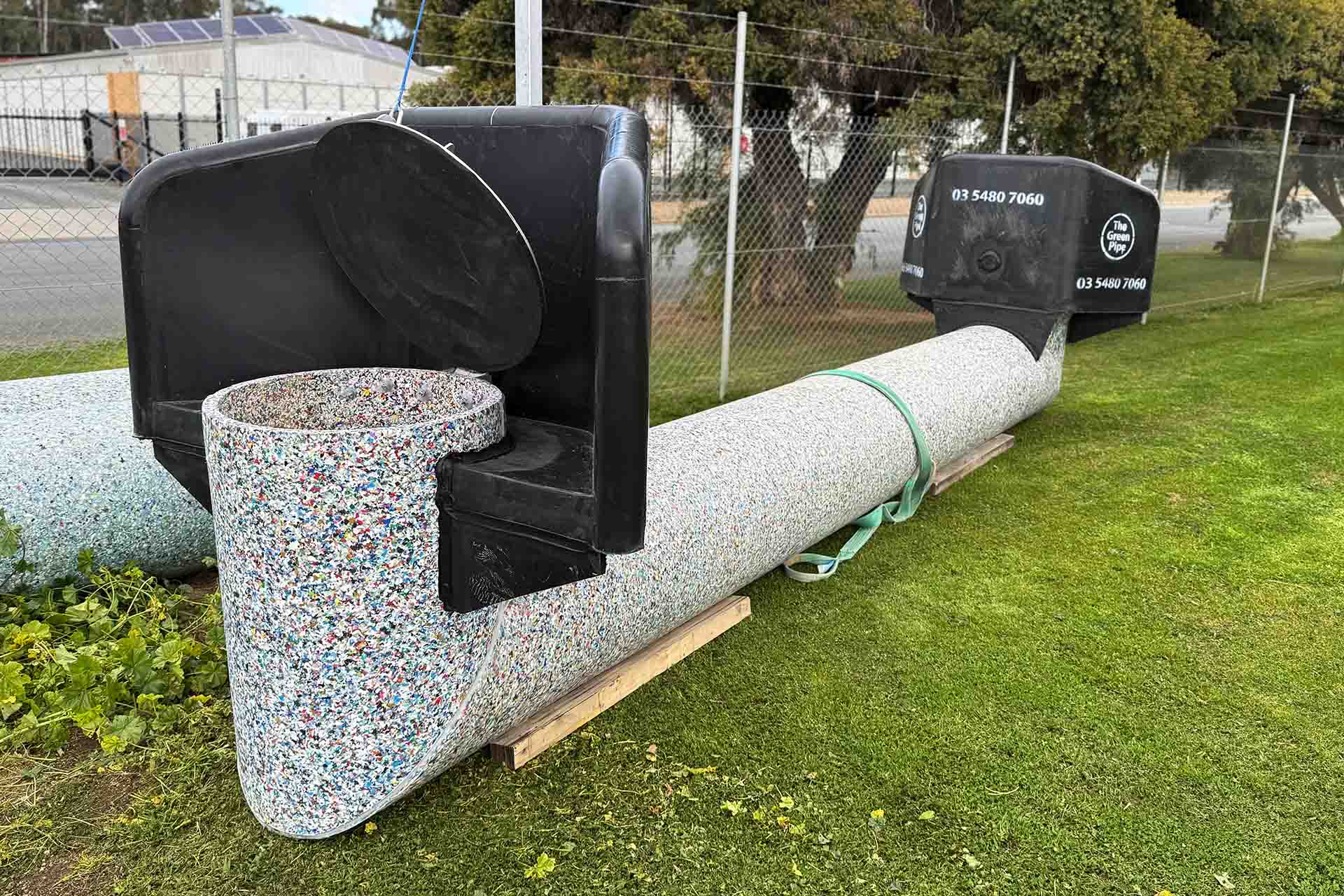

At just 60kg RPT headwalls are extremely tough and suitable for all pipes 250mm to 450mm in diameter. With a 75mm front lip to minimise washout and stabilising lugs for easy installation, our headwalls like The Green Pipe, offer a cost effective answer to the most difficult access installations.

All Green Pipe come as 6m lengths
PIPE RANGE    Headwalls WATER CONTROL VALVES & FITTINGS

Size / diameter

Weight per 6mtr pipe

Standard Bell Mouth for O ring join

O Rings to suit

Flange Pipe for over centre pipelock

Culvet Headwall to suit

Pipelock

Flap & Chain

Slidegate

Headwall with Slidegate

Elbows, T's & Custom Fittings

250mm (10")

45kg

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

300mm (12")

55kg

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

375mm(15")

75kg

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

450mm (18")

110kg

Yes

Yes

 -

Yes

 -

Yes

Yes

Yes

Yes

525mm (21")

165kg

Yes

Yes







Yes

Yes



Yes

600mm (24")

220kg

Yes

Yes







Yes

Yes



Yes

* Please enquire about our 450mm Headwall cut to suit the 525 & 600 mm pipes
